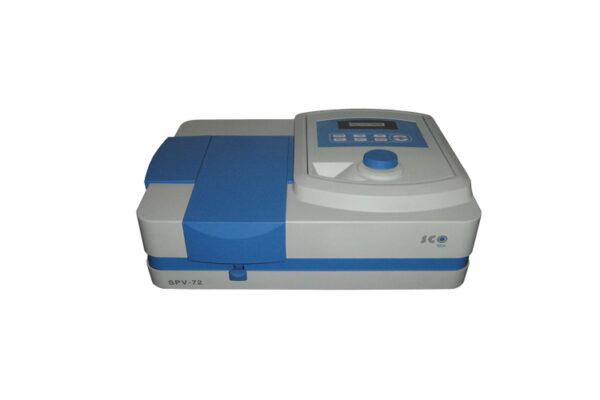

SPV-723N

Visible scanning spectrophotometer single beam



wavelength range 320-1100 nm.





Category:

Description

Visible scanning spectrophotometer single beam, wavelength range 320-1100 nm

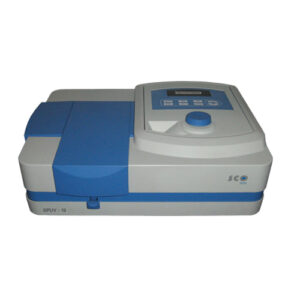

The next generation of the SPUV-72s model.



Introducing the SCO Tech SPV-723N Visible Scanning Spectrophotometer, a powerful single-beam instrument designed for precise wavelength analysis. With a wide wavelength range from 320 to 1100 nm, this spectrophotometer enables comprehensive scanning and accurate measurements.

Experience seamless scanning capabilities and exceptional performance, allowing you to explore the visible spectrum with confidence.

Trust SCO Tech for high-quality, advanced spectrophotometers that meet your analytical needs. Enhance your scientific endeavors with the SPV-723N and unlock new insights into the world of visible light spectroscopy.





Specifications:



   Wavelength Range      320-1100nm
   Spectral Bandwidth      2nm (5nm, 1nm optional)
   Wavelength Accuracy      ±0.5nm
   Wavelength Reproducibility      0.2nm
   Monochromator      single beam, plane grating of 1200L/mm
   Photometric Accuracy      ±0.3%T(0-100%T), ±0.002A (0 ~ 0.5A), ±0.004A (0.5A ~1A)
   Photometric Reproducibility      0.15%T
   Photometric Range      -0.3-3A
   Working Mode      T, A, C, E
   Stary Light      ≤ 0.05%T (NaNO2, 360nm)
   Baseline Flatness      ±0.002A
   Stability      ≤ 0.001A/h (at 500nm, after warming up)
   Light Source      Tungsten halogen lamp
   Detector      Silicon photodiode
   Display      6 inches high light blue LCD
   Power      AC: 220V/50Hz, 110V/60Hz, 140W
   Dimensions      530×410×210 mm
   Weight      18kg



Ordering Information:



   Model      Description of Article
   SPV-723N      Visible scanning spectrophotometer single beam, wavelength range 320-1100 nm
